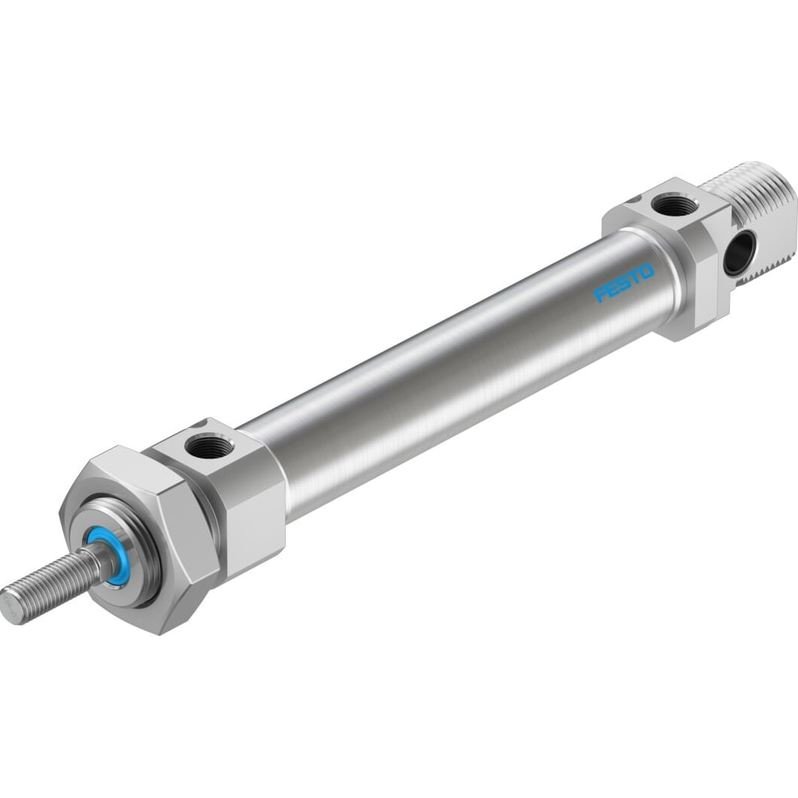

Festo DSNU-20-80-PPV-A Cylinder

ISO cylinder DSNU-20-80-PPV-A Part number: 19238 ★ Core product range Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke 80 mm Piston diameter 20 mm Piston rod thread M8 Cushioning PPV: Pneumatic cushioning adjustable at both ends Assembly position Any Conforms to standard CETOP RP 52 PISO 6432 Piston-rod end Male thread Design structure PistonPiston rodCylinder barrel Position detection For proximity sensor Variants Single-ended piston rod Operating pressure 1 … 10 bar Mode of operation double-acting Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
